found this wiki TRB255 RS485/Modbus 2 Wire-network wiring
The mentioned example is a broken link.

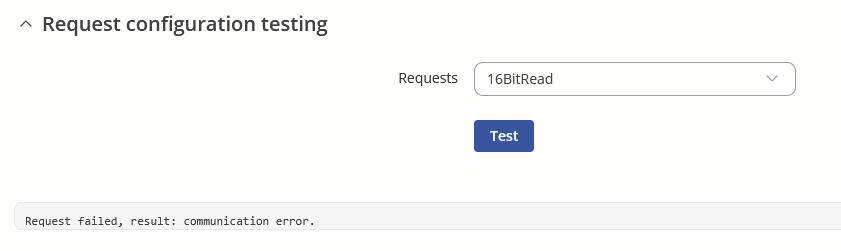

I tried connecting a RS485 sensor, but when i try reading it i get an error
Is there any guide on how to connect it?
found this wiki TRB255 RS485/Modbus 2 Wire-network wiring
The mentioned example is a broken link.
I tried connecting a RS485 sensor, but when i try reading it i get an error
Is there any guide on how to connect it?
Hello, @Carlos

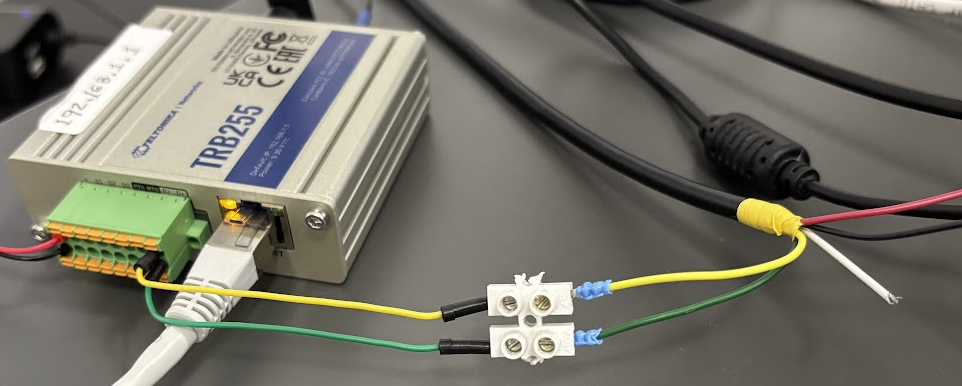

Apologies for a delay. From the provided image, it seems that the RS485 wiring is incorrect. For proper communication, the wiring should follow the setup as shown in the diagram below:
In brief, D+ and R+ should be connected together, and D- and R- should also be connected together.
Let me know if the issue persists after making the change.
Kind regards,
Thank you!
This topic was automatically closed 2 days after the last reply. New replies are no longer allowed.
