Hello,

I have a FMC150 connected to a Mercedes Sprinter and I am sending Codec 8E data via UDP to a custom server which then puts the received data into a InfluxDB for viewing it in Grafana. (I made this server open source here: GitHub - felixtech-msp/Teltonika-FMC150-InfluxDB-Bridge: Teltonika FMC150 AVL 8E InfluxDB2 Bridge ).

It does not see any CAN/OBD data, even though the CAN bus is connected. I made sure CAN_L and CAN_H are correct.

Also I have the problem that the FMC150 is ignoring SMS that I’m sending to it. I configured reply with position when calling and this works. But all SMS commands are ignored. I can see the received sms counter go up, but I never see any reply.

This is the system configuration:

grafik
grafik1376×826 71.1 KB

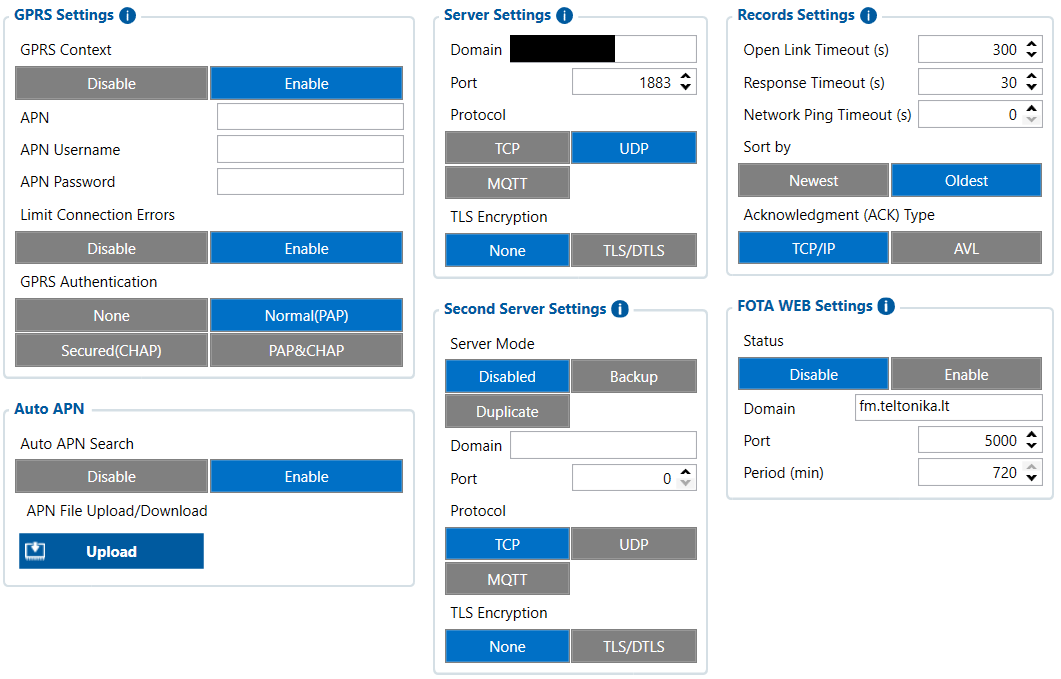

The GPRS configuration:

grafik
grafik1061×679 35.9 KB

I think the CAN communication does not work. But this doesn’t explain the ignored SMS problem.

Would appreciate any hint to fix those bugs.

Thanks,
Felix

2

This topic was automatically closed after 60 days. New replies are no longer allowed.

4

Hello @felixtech

Good day!

FMC150 doesn’t support sending a CAN command to the external BMS,

if you need to do so, kinldy use the FTC305, FMC650, or FMC130+CANcontrol.

FMC150 will only listen to the messages transferred on the CAN bus

BR

laith
