I am setting up a new ATRM50 router and while checking the pinouts to wire a custom M12 power cable, I noticed a clear discrepancy between the WebUI diagram and the official Hardware Wiki.
Device: ATRM50 Firmware Version: RUTOS (ATRM50_R_00.07.21.3) Page: Services > Power Control

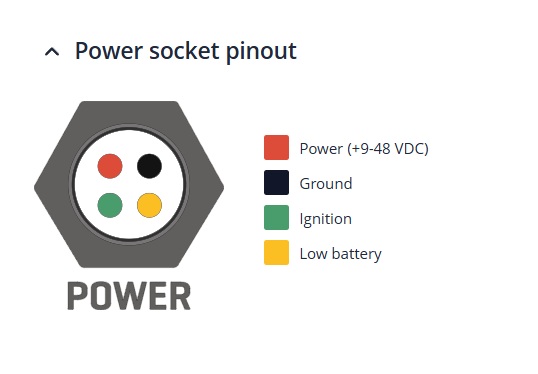

The “Power socket pinout” graphic at the bottom of the page has two mistakes compared to the official hardware datasheet/Wiki:
1. Swapped Input Pins:
-
In WebUI: The Ignition pin (Green) is shown on the bottom-left, and the Low Battery pin (Yellow) is on the bottom-right.
-

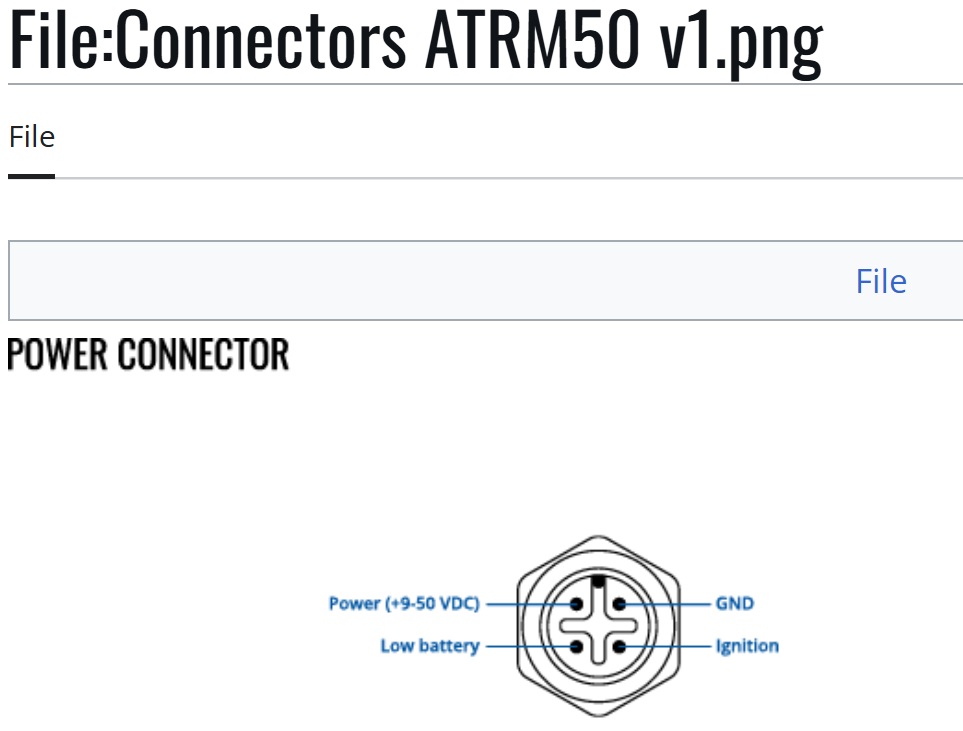

In Official Wiki: The Low Battery pin is on the bottom-left (under Power), and the Ignition pin is on the bottom-right (under GND). The WebUI has them reversed.
2. Incorrect Voltage Info:
-
In WebUI: The Power pin label says “(+9-48 VDC)”.
-
In Official Wiki: The supported voltage is “(+9-50 VDC)”.
Since the ATRM50 requires users to wire their own M12 cables, relying on the WebUI diagram could lead to incorrect physical wiring for the Ignition and Low Battery detection features.
Could you please pass this report to the R&D / WebUI development team so the graphic can be corrected in an upcoming RutOS release?
I have attached screenshots of both the WebUI page and the official Wiki diagram for comparison.
