RUTx14 Output wiring

[mrunje96]

Hi, i didnt understood the right way to wire the output of the RUTx14 to the external low power relay.

Can you confirm me that this is ok or can you provide official schematic to connect it?

Do i need external power supply other than router ones and I/O adapter?

[anon65719490]

Hello,

Thank you for reaching out.

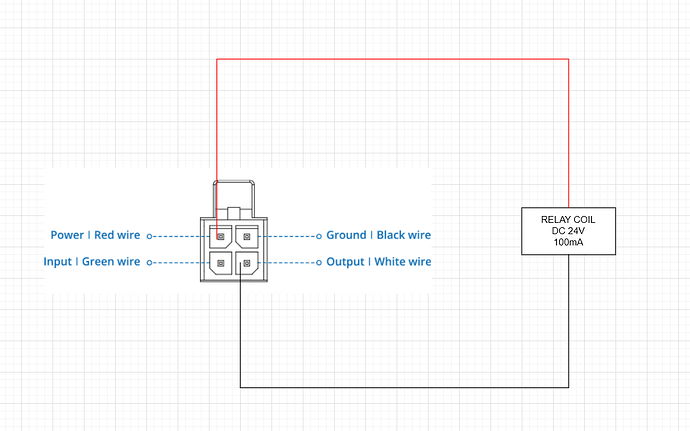

Please refer to the official wiring diagram showing how to connect a relay to an open-collector output here:

• Relay to Open Collector Output

This is also applicable to your RUTX14 device.

Best regards,

[mrunje96]

Thank you for the clarification.

[anon65719490]

Hello,

No problem, we’re here to help you. Please feel free to let me know if you have any additional questions, or we can consider this thread resolved and close it.

Best regards,
