Hello, I have a problem configuring a Modbus TCP over Serial Gateway using RS485 between a router and a Modbus server (an electric meter). The issue is that whenever I send a request from my client (running on a PC) through the gateway on the router, I consistently receive an inconsistent response that does not comply with the Modbus protocol.
The way I connected the Modbus server (electric meter) to the router is simple – I connected the meter’s terminal B to D_N and the terminal A to DP on the meter. I did not connect any other terminals. For wiring, I am using two strands from an Ethernet cable.
Using this Go library:
package main
import (
"fmt"
"github.com/goburrow/modbus"
)
func main() {
handler := modbus.NewTCPClientHandler("10.0.0.1:5022")
handler.SlaveId = 1
err := handler.Connect()
if err != nil {
fmt.Printf("%v\n", err)
}
defer handler.Close()
client := modbus.NewClient(handler)
results, err := client.ReadHoldingRegisters(50, 2)
if err != nil {
fmt.Printf("%v\n", err)
}
fmt.Printf("results %v\n", results)
}

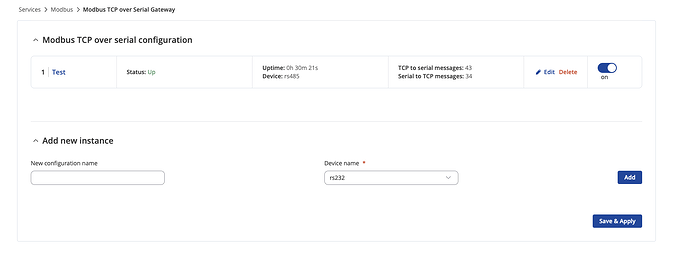

I am trying to query my meter for data. Unfortunately, although the router’s graphical interface indicates that the request was successfully converted from TCP to serial and back from serial to TCP, I receive a different response from the router each time.
What I have already tried:
• Connected a different meter to the router – the result was the same.
• Used another Go library – the result was the same.
• Swapped A and B on RS485 – each time I got a timeout.
• Disabled all services in the router’s service list – the result was the same.

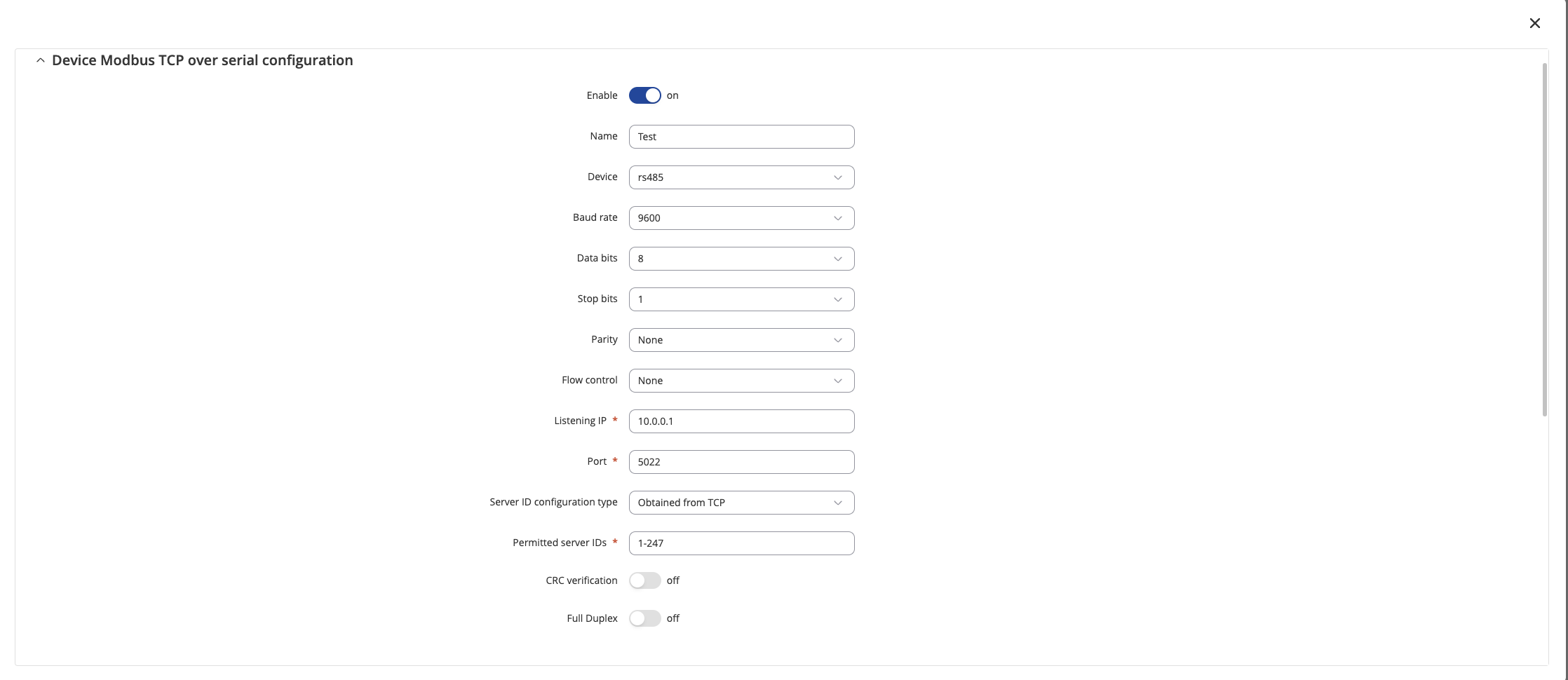

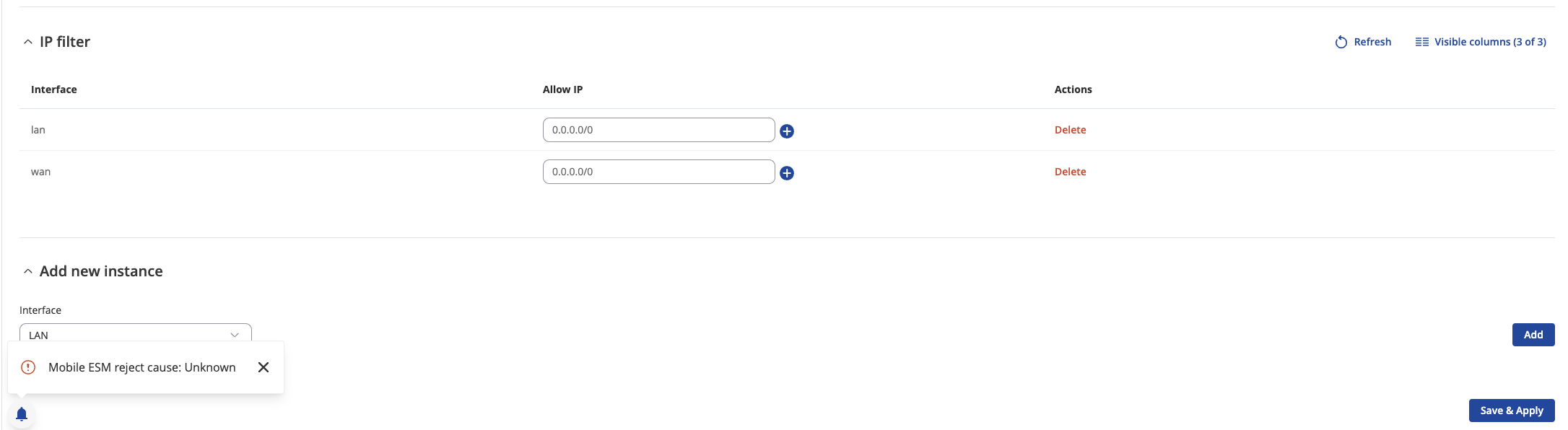

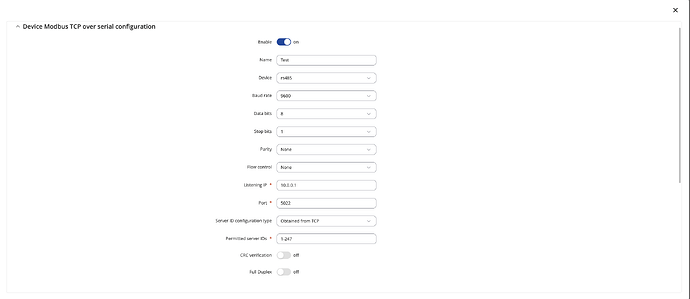

Attached are screenshots of the router setting. I cannot send a Wireshark capture containing the communication because new users cannot add attachments. Below, I paste some of the bitwise responses I received back from the router:
000100000003010304
0001000000050103044248
00010000000301a84a
